# Build a Basic Marker Tracking Experience

{% content-ref url="<https://app.gitbook.com/o/QMsd5hT6sxA9FBIB03yh/s/3UKy7VHRJWrNarYaMp13/>" %}
[Blippar Documentation Centre](https://app.gitbook.com/o/QMsd5hT6sxA9FBIB03yh/s/3UKy7VHRJWrNarYaMp13/)
{% endcontent-ref %}

## **Marker Tracking** <a href="#h_01fvh21d5yfx9y9rn96j2vc501" id="h_01fvh21d5yfx9y9rn96j2vc501"></a>

## Create a basic scene <a href="#h_01fvhfz0v8b3c7ydepb6vsrf7v" id="h_01fvhfz0v8b3c7ydepb6vsrf7v"></a>

* Login to your PlayCanvas Account OR you can alternatively click the link to fork this PlayCanvas [Marker Tracking](https://playcanvas.com/project/859368/overview/marker-tracking) project

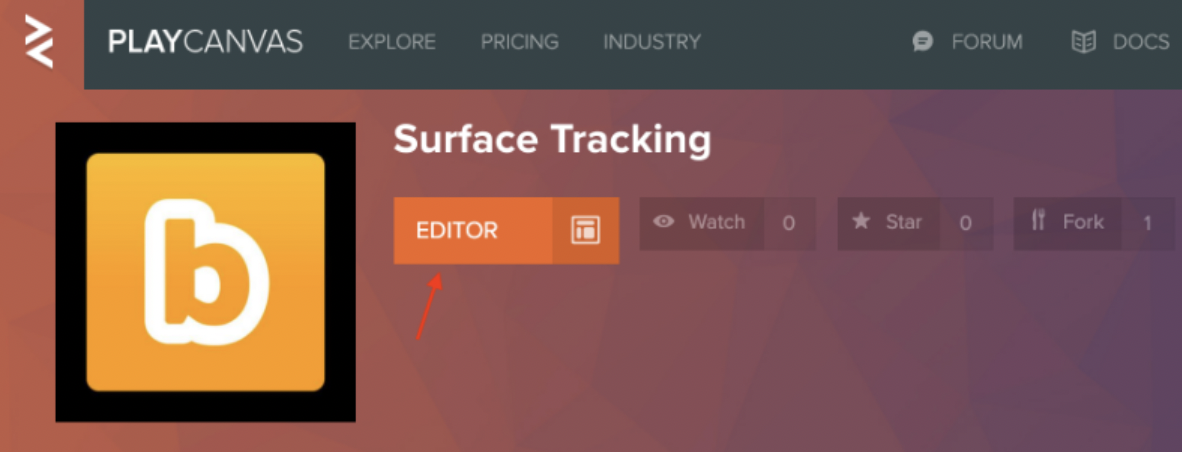

* Click **'Editor'** to open the project in PlayCanvas Editor as shown in the image below:

<figure><img src="https://2886719054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqVKCSCzJmvbknXbHtARJ%2Fuploads%2Fgit-blob-0dea275a6e2339061fec9dcd9ecc5a7c892db407%2FScreenshot%202023-03-02%20at%203.27.26%20PM.png?alt=media" alt=""><figcaption><p>PlayCanvas Editor</p></figcaption></figure>

* Select the **Main** Scene
* Click the gear icon to open Main settings as show in the image below:
* A pop-up will appear as an instructor panel on the right side of the screen
* Click on **'External Scripts'**
* A URLs pop-up will appear on the screen with a sample license key as shown in the image below:

<figure><img src="https://2886719054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqVKCSCzJmvbknXbHtARJ%2Fuploads%2Fgit-blob-8ed02b718a86a663b0dc47c3583197802d86a6f6%2FScreenshot%202023-03-02%20at%203.28.34%20PM.png?alt=media" alt=""><figcaption></figcaption></figure>

* In the left **'Hierarchy'** panel select the **Root** Entity
* In the right Inspector Panel, click the **'arrow'** next to WebarSdkSurface '**Script'** component aand make sure the following the following details are entered:
* Ensure the *Camera* Entity is selected under the **Webar Camera** field
* Enter the number (maximum 10) of marker images to be tracked in the **MarkerEntityMap**'s **Array Size** field. Each array object has a map of Marker Id with the Entity to be displayed on the marker image when scanning.
* In the forked example, replace the sample Marker Ids (dddddddd-uuuu-mmmm-mmmm-yyyyyyyy1111 and dddddddd-uuuu-mmmm-mmmm-yyyyyyyy2222) with valid Marker Ids obtained from the Marker Manager in the Blippar hub.
* For more information refer [this article](https://support.blippar.com/hc/en-us/articles/4410413461011-Building-a-Basic-Marker-Tracking-Experience)[ ](https://docs.blippar.com/webar-sdk/v.1.7.0/integrations/a-frame-integration/build-a-marker-tracking-experience)on how to Add Marker and Manage Marker
* Click **Publish/Download** from the left panel and download the project
* Host it on a local/remote HTTPS web server
* You can alternatively host it on a server having the same domain name as the one for which the license key is registered.
* For more information refer article [develop locally](https://support.blippar.com/hc/en-us/articles/4407844463763-Develop-Locally)[ ](https://docs.blippar.com/webar-sdk/v.1.7.0/publish-your-creation/develop-locally)to setup a local HTTPS web server.

## View The Experience

Load the URL on a mobile browser(iOS Safari or Android Chrome) to start scanning the marker images to experience Marker Tracking


---
