Build a Basic Marker Tracking Experience

Construction of an AR experience using image or marker tracking

Marker Tracking

Create a basic scene

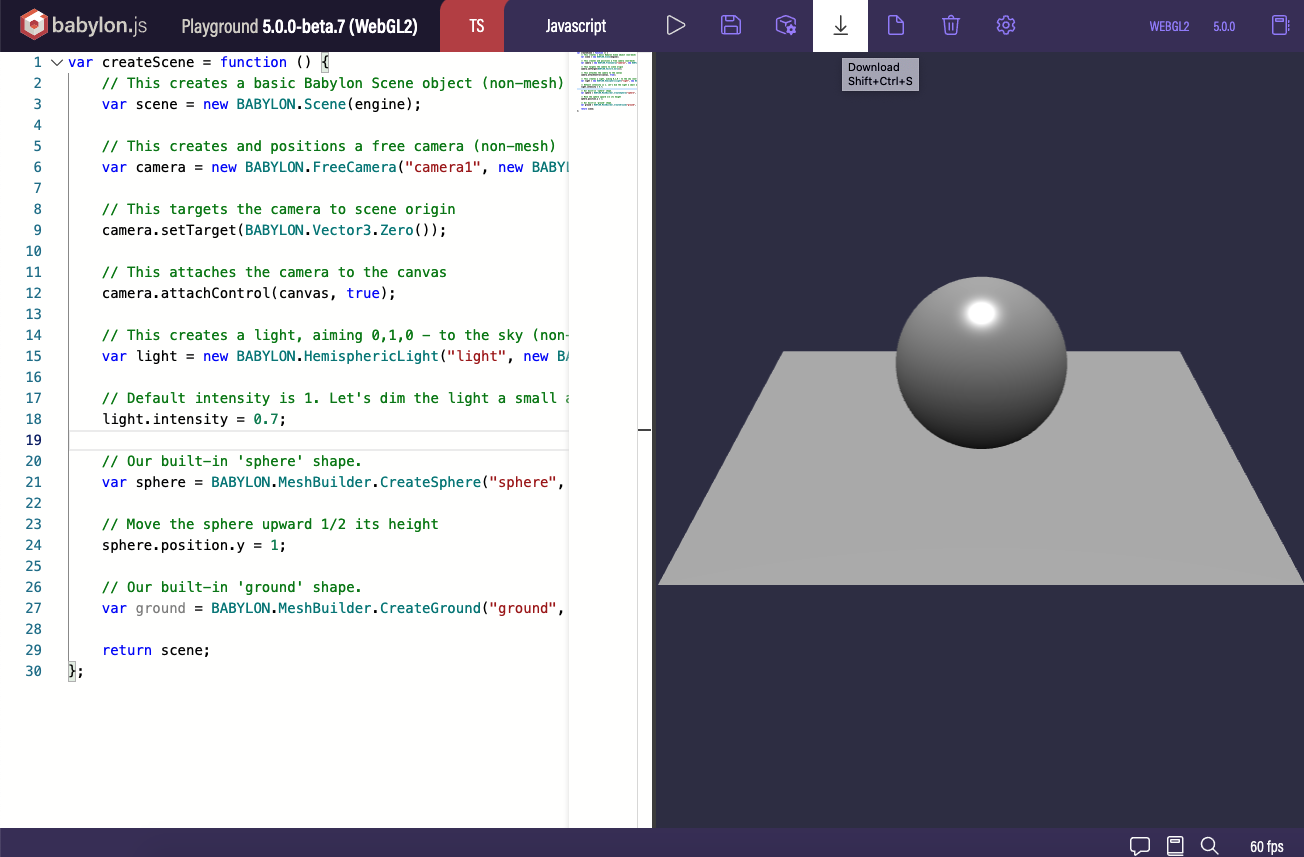

Create a basic scene from and download the source code by clicking the Download button.
Or you can download the already generated basic scene code from .

Unzip the downloaded code and open the index.html file a code editor of your choice.
This basic scene source code from Babylon.js playground has the code to create the babylon rendering engine and construct a scene with a Sphere and a ground plane model.

It also has many javascript libraries which are not necessary for this example. Hence delete all the script tags and include only the following Babylon.js scripts.

<!-- Babylon.js -->
<!-- Delete all the other scripts and add only the following scripts -->
<script src="https://cdn.babylonjs.com/babylon.js"></script>
<script src="https://cdn.babylonjs.com/loaders/babylonjs.loaders.min.js"></script>

This document is compatible with Babylon.js version 4.2.0.

Delete these redundant lines from the playground generated code which are not necessary for webar experience.

```javascript
// This targets the camera to scene origin
camera.setTarget(BABYLON.Vector3.Zero());

// This attaches the camera to the canvas
camera.attachControl(canvas, true);
```

Add WebAR SDK script

Add the webar sdk script tag with the following attributes

webar-mode="marker-tracking"
auto-start="true"
rendering-engine="babylonjs"

Set the webar-mode attribute to "marker-tracking" to make the webar sdk run in marker tracking mode.

As a query parameter in the https url of webar sdk script, paste your license key obtained from Blippar hub which will be in the following form:

?license-key=xxxxxxxx-1111-2222-3333-yyyyyyyyyyyy

Make sure this webar sdk script is added only after the babylonjs script has been added in the previous section.

<script src="https://webar-sdk.blippar.com/releases/1.4.3/webar-sdk-v1.5.3.min.js?license-key=xxxxxxxx-1111-2222-3333-yyyyyyyyyyyy"
  webar-mode="marker-tracking"
  auto-init="true"
  auto-start="true"
  rendering-engine="babylonjs">
</script>

Create webar marker mesh map array

A webar marker is an empty Babylon mesh object in the scene. Set this webar marker mesh object as the parent of the 3D objects that has to be displayed when scanning a physical marker image.

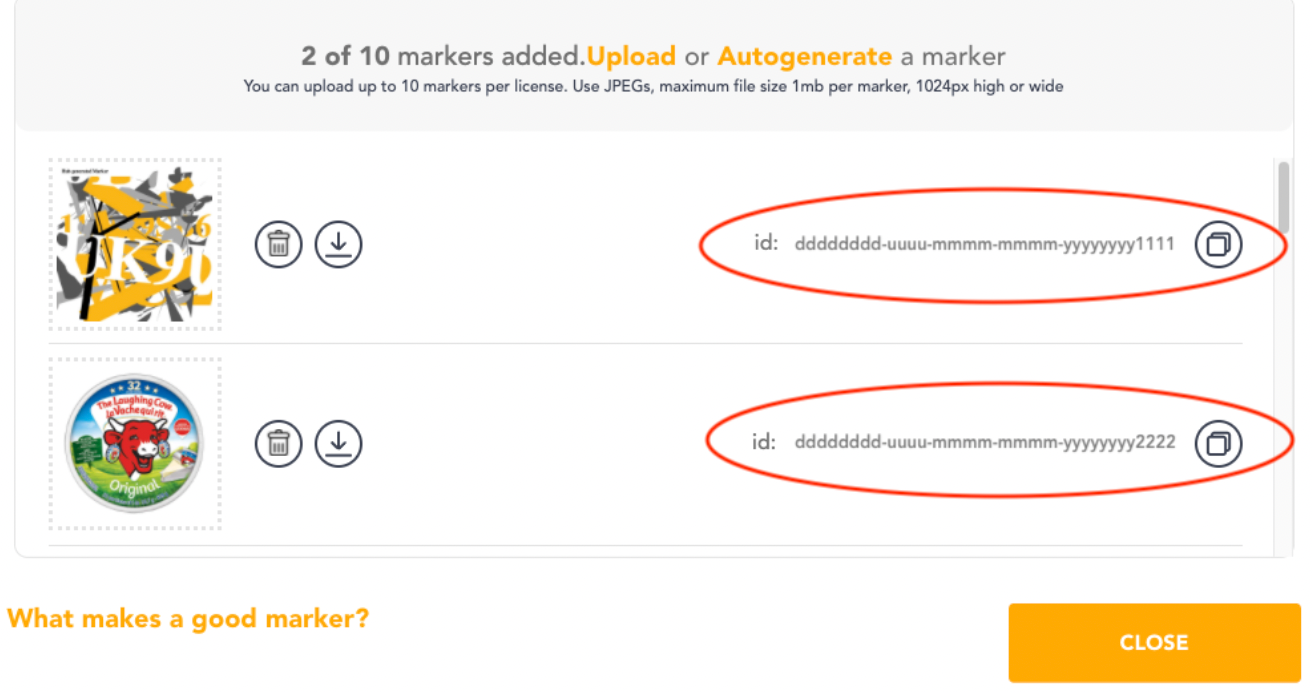

In the Blippar Hub you can upload up to 10 marker images. For each marker image a webar marker mesh has to be created and mapped with the marker image id obtained from Blippar hub (marked with red circle in the below picture). Please have a look at this article to know how to Add and Manage markers in Blippar hub and obtain a marker id.

A webar marker mesh (e.g. markerMeshObject_1) is mapped with a marker image id (e.g. dddddddd-uuuu-mmmm-mmmm-yyyyyyyy1111) using the following javascript object structure:

{
  markerId   : "dddddddd-uuuu-mmmm-mmmm-yyyyyyyy1111",
  markerMesh : <markerMeshObject_1>
}

An array of such objects can be constructed to map multiple marker image ids with their corresponding marker mesh object. This array will be passed as an argument to WebAR SDK's InitBabylonJs API which will be used by the sdk to decide which object has to be displayed on which marker image when it is detected.

[
  {
    markerId   : "dddddddd-uuuu-mmmm-mmmm-yyyyyyyy1111",
    markerMesh : <markerMeshObject_1>
  },
  {
    markerId : "dddddddd-uuuu-mmmm-mmmm-yyyyyyyy2222",
    markerMesh : <markerMeshObject_2>
  }
]

In this example we use two marker images. Hence two webar marker mesh objects have to be created.

Under the createScene function:

First delete these lines of playground generated code which creates sphere and ground meshes.

// Our built-in 'sphere' shape.
var sphere = BABYLON.MeshBuilder.CreateSphere("sphere", {diameter: 2, segments: 32}, scene);

// Move the sphere upward 1/2 its height
sphere.position.y = 1;

// Our built-in 'ground' shape.
var ground = BABYLON.MeshBuilder.CreateGround("ground", {width: 6, height: 6}, scene);

Construct two webar mark mesh objects

// Create two empty meshes. Models/meshes appended as a children to this empty mesh will be displayed on the corresponding mapped marker.
 let webarMarkerMesh1 = new BABYLON.Mesh("webarMarkerMesh1", scene);
 let webarMarkerMesh2 = new BABYLON.Mesh("webarMarkerMesh2", scene);

Define an array webarMarkerMeshMap and push the map object containing the markerId and markerMesh values

var webarMarkerMeshMap = [];

webarMarkerMeshMap.push({ markerId: "dddddddd-uuuu-mmmm-mmmm-yyyyyyyy1111", markerMesh: webarMarkerMesh1 });
webarMarkerMeshMap.push({ markerId: "dddddddd-uuuu-mmmm-mmmm-yyyyyyyy2222", markerMesh: webarMarkerMesh2 });

Add a GLB model to the first marker mesh

Under the createScene function, import the GLB file MaterialsVariantsShoe.glb using Babylon SceneLoader and set webarMarkerMesh1 as the parent for the mesh nodes.

When Babylon imports GLB model files, it creates a __root__ mesh as a parent node for all the meshes. So skip the __root__ mesh in setting the webarMarkerMesh1 as its parent.

BABYLON.SceneLoader.ImportMesh(null, "./models/", "MaterialsVariantsShoe.glb", scene, function (meshes, particleSystems, skeletons) {
  let xQuat = new BABYLON.Quaternion();
  for (mesh of meshes) {
    if (mesh.name !== '__root__') {
      // Move the loaded models to webarMarkerMesh1
      mesh.setParent(webarMarkerMesh1);
      BABYLON.Quaternion.FromEulerAnglesToRef(Math.PI / 2, 0, 0, xQuat);
      mesh.rotationQuaternion.multiplyInPlace(xQuat);
      scaleByFactor(mesh, 6);
    }
  }
});

Add a GLB model to the first marker mesh

Under the createScene function, import the GLB file MaterialsVariantsShoe.glb using Babylon SceneLoader and set webarMarkerMesh1 as the parent for the mesh nodes.

When Babylon imports GLB model files, it creates a __root__ mesh as a parent node for all the meshes. So skip the __root__ mesh in setting the webarMarkerMesh1 as its parent.

BABYLON.SceneLoader.ImportMesh(null, "./models/", "MaterialsVariantsShoe.glb", scene, function (meshes, particleSystems, skeletons) {
  let xQuat = new BABYLON.Quaternion();
  for (mesh of meshes) {
    if (mesh.name !== '__root__') {
      // Move the loaded models to webarMarkerMesh1
      mesh.setParent(webarMarkerMesh1);
      BABYLON.Quaternion.FromEulerAnglesToRef(Math.PI / 2, 0, 0, xQuat);
      mesh.rotationQuaternion.multiplyInPlace(xQuat);
      scaleByFactor(mesh, 6);
    }
  }
});

Add a GLB model to the second marker mesh

Similarly, import the GLB file milk_bottle_1l.glb using Babylon SceneLoader and set webarMarkerMesh2 as the parent for the mesh nodes.

In SceneLoader ImportMesh API filter 'Object_4' and 'Object_6' nodes alone to exclude the unwanted parts of the milk_bottle_1l.glb model from loading.
When Babylon imports GLB model files, it creates a __root__ mesh as a parent node for all the meshes. So skip the __root__ mesh in setting the webarMarkerMesh2 as its parent.

BABYLON.SceneLoader.ImportMesh(['Object_4', 'Object_6'], "./models/", "milk_bottle_1l.glb", scene, function (meshes, particleSystems, skeletons) {
  for (mesh of meshes) {
    if (mesh.name !== '__root__') {
      // Move the loaded models to webarMarkerMesh2
      mesh.setParent(webarMarkerMesh2);
      mesh.position.y = -0.75;
      scaleByFactor(mesh, 5);
    }
  }
});

Initialise WebAR SDK

// Pass babylon canvas, scene, camera and webarStage mesh to WebarSdk to initialize surface tracking
WEBARSDK.InitBabylonJs(canvas, scene, camera, webarMarkerMeshMap);

Deployment

Deploy your files (the HTML file and the blippar folder if you downloaded the SDK) to your web server.

Note:

Your website must have https enabled, this is to enable the browser to access your camera.

Full Source Code

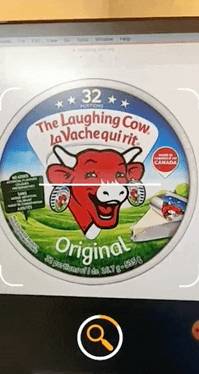

Resulting Marker Tracking Experience

PreviousBuild a Basic Surface Tracking Experience NextUnity Integration

Marker Tracking

Create a basic scene

Create a basic scene from and download the source code by clicking the Download button.
Or you can download the already generated basic scene code from .

Unzip the downloaded code and open the index.html file a code editor of your choice.
This basic scene source code from Babylon.js playground has the code to create the babylon rendering engine and construct a scene with a Sphere and a ground plane model.

It also has many javascript libraries which are not necessary for this example. Hence delete all the script tags and include only the following Babylon.js scripts.

<!-- Babylon.js -->
<!-- Delete all the other scripts and add only the following scripts -->
<script src="https://cdn.babylonjs.com/babylon.js"></script>
<script src="https://cdn.babylonjs.com/loaders/babylonjs.loaders.min.js"></script>

This document is compatible with Babylon.js version 4.2.0.

Delete these redundant lines from the playground generated code which are not necessary for webar experience.

```javascript
// This targets the camera to scene origin
camera.setTarget(BABYLON.Vector3.Zero());

// This attaches the camera to the canvas
camera.attachControl(canvas, true);
```

Add WebAR SDK script

Add the webar sdk script tag with the following attributes

webar-mode="marker-tracking"
auto-start="true"
rendering-engine="babylonjs"

Set the webar-mode attribute to "marker-tracking" to make the webar sdk run in marker tracking mode.

As a query parameter in the https url of webar sdk script, paste your license key obtained from Blippar hub which will be in the following form:

?license-key=xxxxxxxx-1111-2222-3333-yyyyyyyyyyyy

Make sure this webar sdk script is added only after the babylonjs script has been added in the previous section.

There are other attributes to customise the way the loading progress bar screen appears. Please refer documentation for more details.

<script src="https://webar-sdk.blippar.com/releases/1.4.3/webar-sdk-v1.5.3.min.js?license-key=xxxxxxxx-1111-2222-3333-yyyyyyyyyyyy"
  webar-mode="marker-tracking"
  auto-init="true"
  auto-start="true"
  rendering-engine="babylonjs">
</script>

Create webar marker mesh map array

A webar marker is an empty Babylon mesh object in the scene. Set this webar marker mesh object as the parent of the 3D objects that has to be displayed when scanning a physical marker image.

A webar marker mesh (e.g. markerMeshObject_1) is mapped with a marker image id (e.g. dddddddd-uuuu-mmmm-mmmm-yyyyyyyy1111) using the following javascript object structure:

{
  markerId   : "dddddddd-uuuu-mmmm-mmmm-yyyyyyyy1111",
  markerMesh : <markerMeshObject_1>
}

[
  {
    markerId   : "dddddddd-uuuu-mmmm-mmmm-yyyyyyyy1111",
    markerMesh : <markerMeshObject_1>
  },
  {
    markerId : "dddddddd-uuuu-mmmm-mmmm-yyyyyyyy2222",
    markerMesh : <markerMeshObject_2>
  }
]

In this example we use two marker images. Hence two webar marker mesh objects have to be created.

Under the createScene function:

First delete these lines of playground generated code which creates sphere and ground meshes.

// Our built-in 'sphere' shape.
var sphere = BABYLON.MeshBuilder.CreateSphere("sphere", {diameter: 2, segments: 32}, scene);

// Move the sphere upward 1/2 its height
sphere.position.y = 1;

// Our built-in 'ground' shape.
var ground = BABYLON.MeshBuilder.CreateGround("ground", {width: 6, height: 6}, scene);

Construct two webar mark mesh objects

// Create two empty meshes. Models/meshes appended as a children to this empty mesh will be displayed on the corresponding mapped marker.
 let webarMarkerMesh1 = new BABYLON.Mesh("webarMarkerMesh1", scene);
 let webarMarkerMesh2 = new BABYLON.Mesh("webarMarkerMesh2", scene);

Define an array webarMarkerMeshMap and push the map object containing the markerId and markerMesh values

var webarMarkerMeshMap = [];

webarMarkerMeshMap.push({ markerId: "dddddddd-uuuu-mmmm-mmmm-yyyyyyyy1111", markerMesh: webarMarkerMesh1 });
webarMarkerMeshMap.push({ markerId: "dddddddd-uuuu-mmmm-mmmm-yyyyyyyy2222", markerMesh: webarMarkerMesh2 });

Add a GLB model to the first marker mesh

Under the createScene function, import the GLB file MaterialsVariantsShoe.glb using Babylon SceneLoader and set webarMarkerMesh1 as the parent for the mesh nodes.

When Babylon imports GLB model files, it creates a __root__ mesh as a parent node for all the meshes. So skip the __root__ mesh in setting the webarMarkerMesh1 as its parent.

BABYLON.SceneLoader.ImportMesh(null, "./models/", "MaterialsVariantsShoe.glb", scene, function (meshes, particleSystems, skeletons) {
  let xQuat = new BABYLON.Quaternion();
  for (mesh of meshes) {
    if (mesh.name !== '__root__') {
      // Move the loaded models to webarMarkerMesh1
      mesh.setParent(webarMarkerMesh1);
      BABYLON.Quaternion.FromEulerAnglesToRef(Math.PI / 2, 0, 0, xQuat);
      mesh.rotationQuaternion.multiplyInPlace(xQuat);
      scaleByFactor(mesh, 6);
    }
  }
});

Add a GLB model to the first marker mesh

Under the createScene function, import the GLB file MaterialsVariantsShoe.glb using Babylon SceneLoader and set webarMarkerMesh1 as the parent for the mesh nodes.

When Babylon imports GLB model files, it creates a __root__ mesh as a parent node for all the meshes. So skip the __root__ mesh in setting the webarMarkerMesh1 as its parent.

BABYLON.SceneLoader.ImportMesh(null, "./models/", "MaterialsVariantsShoe.glb", scene, function (meshes, particleSystems, skeletons) {
  let xQuat = new BABYLON.Quaternion();
  for (mesh of meshes) {
    if (mesh.name !== '__root__') {
      // Move the loaded models to webarMarkerMesh1
      mesh.setParent(webarMarkerMesh1);
      BABYLON.Quaternion.FromEulerAnglesToRef(Math.PI / 2, 0, 0, xQuat);
      mesh.rotationQuaternion.multiplyInPlace(xQuat);
      scaleByFactor(mesh, 6);
    }
  }
});

Add a GLB model to the second marker mesh

Similarly, import the GLB file milk_bottle_1l.glb using Babylon SceneLoader and set webarMarkerMesh2 as the parent for the mesh nodes.

In SceneLoader ImportMesh API filter 'Object_4' and 'Object_6' nodes alone to exclude the unwanted parts of the milk_bottle_1l.glb model from loading.
When Babylon imports GLB model files, it creates a __root__ mesh as a parent node for all the meshes. So skip the __root__ mesh in setting the webarMarkerMesh2 as its parent.

BABYLON.SceneLoader.ImportMesh(['Object_4', 'Object_6'], "./models/", "milk_bottle_1l.glb", scene, function (meshes, particleSystems, skeletons) {
  for (mesh of meshes) {
    if (mesh.name !== '__root__') {
      // Move the loaded models to webarMarkerMesh2
      mesh.setParent(webarMarkerMesh2);
      mesh.position.y = -0.75;
      scaleByFactor(mesh, 5);
    }
  }
});

Initialise WebAR SDK

Under the createScene function, call the Webar SDK's InitBabylonJs API. Once the webar sdk script is loaded, its APIs can be accessed using the WEBARSDK global variable. Please refer to the documentation for more details.

// Pass babylon canvas, scene, camera and webarStage mesh to WebarSdk to initialize surface tracking
WEBARSDK.InitBabylonJs(canvas, scene, camera, webarMarkerMeshMap);

Deployment

Deploy your files (the HTML file and the blippar folder if you downloaded the SDK) to your web server.

Note:

You can also develop and host locally in Dev Mode, see more info here
Your website must have https enabled, this is to enable the browser to access your camera.

Navigate to your page, the WebAR SDK should work with any modern browser but is extensively tested with Safari (iOS) and Chrome (android). If all has gone well you will see the following results below. Information about launching the AR experience is available.

Full Source Code

Full source code of this WebAR SDK BabylonJS Marker Tracking example can be seen in the
